Networkable self-powered 2 way full-range speaker system equipped with two 10'' woofers and one HF driver

Full-range two-way self-powered active system, equipped with two 10" woofers and high frequency driver, networkable. The long-excursion woofers are equipped with a 3" coil with super-ventilated neodymium magnets (so as to minimize the clipping effect) mounted in symmetrical configuration (D'Appolito). This is the only configuration that allows both symmetrical polar response and full acoustic sum of woofers throughout the frequency range. The high frequency driver has a 3" coil and neodymium magnet (the same used in the RA16 and SPOT2500 systems).

Wind2200 is powered by Class D amplifier and controlled by a new generation of Montarbo DSP processors that provides FIR - IIR filtering with innovative solutions, standard AES-EBU audio digital link with sampling frequency converter and customized network for remote control of the system.

• APPLICATIONS
• Main sound system in large clubs, theatres and large open spaces, long system range
• Fixed and semi-permanent installations
• Front-fill and side-fill reinforcement, for speech reinforcement, for conventions or conferences
• Wide dispersion ensures uniform audience coverage, even when using only one speaker per side (FOH)

TECHNICAL SPECIFICATIONS MONTARBO WIND 2200

• Frequency response [-3 dB]: 55 Hz – 20 kHz
• Max SPL: 135 dB
• HF: Driver
• HF Voice Coil: 3" neodymium
• HF Type: 1,4"
• Dispersion (HxV): 60 x 40
• Crossover frequency: 900 Hz
• LF: 2 x 10" neodymium
• LF Voice Coil: 3"
• LF Type: SLR
• Class D amplification
• Peak power: 2500 watts
• RMS power: 1800 watts
• Controller
• Convertitore AD/DA Converter
• System Presets
• Limiter
• Dual Active Peak, RMS, Thermal
• AES/EBU input signal: XLR
• Analog input signal: XLR
• AES/EBU output signal: XLR
• Analog output signal: XLR
• RJ45
• USB connector (LD24)
• Hanging
• Handles

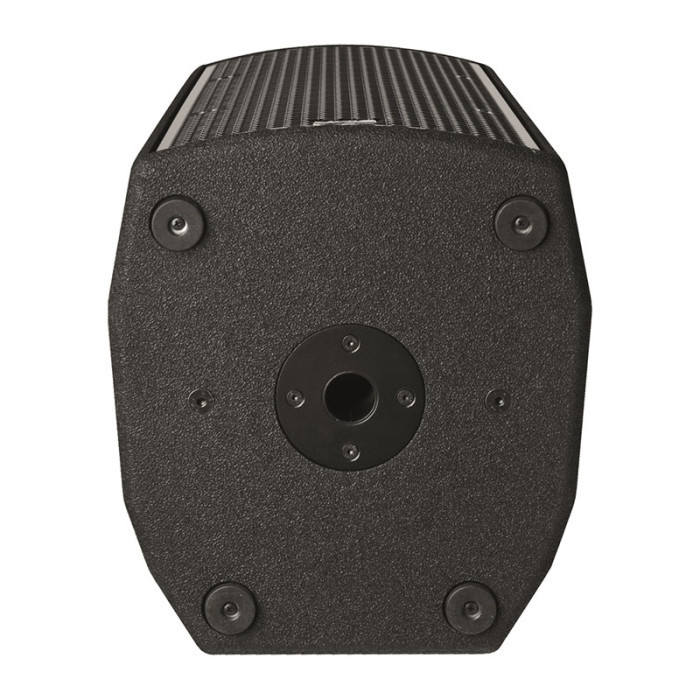

• Pole mount
• Dimensions: 358 x 866 x 400 mm

Weight: 32 Kg

Montarbo Wind 2200 Biamplified Loudspeaker
