| Model: | Montarbo Fire 15A MK2 |
| Manufacturer: | Montarbo |Made in Italy |

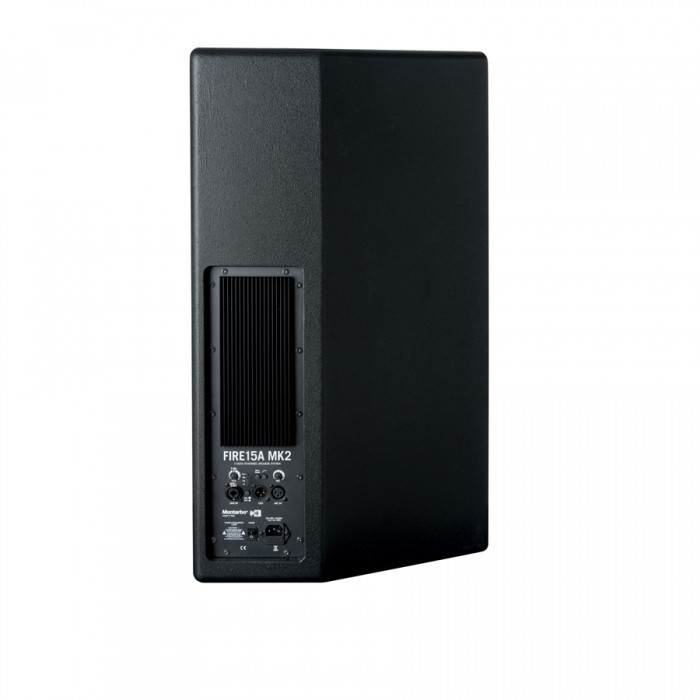

Montarbo Fire 15A MK2 Active Speaker
Technology, Design, and Power
The new FIRE MK2 Series includes 3 two-way active full-range systems. The new FIRE MK2 loudspeakers feature a double Class-D amplifier with an all-new 24-bit DSP, developed by our R&D team, which offers the possibility to select the FOH or Monitor preset.
As regards the connections, the FIRE MK2 Series loudspeakers feature a LINE-IN Input on XLR Combo connector, a MIC-IN Input on XLR connector, and a balanced Output on XLR connector.

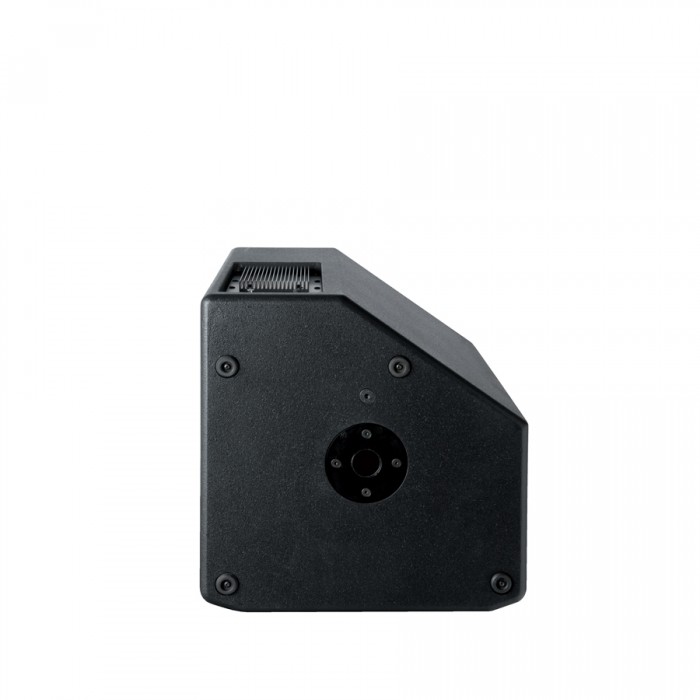

The birch plywood cabinet allows fast and efficient installations, suitable for any location thanks to the various fixing and positioning modes, from the rubber feet to the six M10 threaded inserts for suspended uses, and the standard 35mm hole for pole-mounting. The new MK2 Series provides three different woofer sizes (10" - 12" - 15"), both in active and passive version.
The Fire15A MK2 combines a 15" ferrite-magnet woofer and a 1.4" horn-loaded compression driver (50° x 40°), developing a 1100 W maximum power, maintaining excellent performance and tone over the entire frequency range.
TECHNICAL SPECIFICATIONS
| ACOUSTIC DATA | |
| Frequency Response [-3 dB] | 50 Hz – 20 kHz |
| Max SPL | 136 dB |
| HF | 1,4” |
| HF Voice Coil | 2,5” |
| HF Type | Driver |
| Dispersion (HxV) | 50° x 40° |
| Crossover Frequency | 1100 Hz |
| LF | 15” neodymium magnet |
| LF Voice Coil | 3” |
| LF Type | Reflex |
| AMPLIFIER | |
| Amp Class | 2 x class D (900W LF + 200W HF) |
| Peak Power | 1100 watt |
| RMS Power | 780 watt |
| Self-rotating display | No |
| PROCESSOR | |
| AD/DA Converter | No |
| System Presets | Yes (FOH, Monitor) |
| Limiter | Yes |
| Dual Active Peak, RMS, Thermal | Yes |
| INPUT SECTION | |
| Signal input | 2 x XLR (1 x LINE IN / 1 x MIC IN) |
| Signal Out | 1 x XLR |
| HARDWARE | |
| Housing | Plywood |
| Flyable | Yes |
| Handles | Yes |
| Pole mount | Yes |
| Width | 440 mm (17,32 in) |
| Height | 780 mm (30,70 in) |
| Depth | 440 mm (17,32 in) |
| Weight | 26,9 Kg (59,30 lb) |
Montarbo Fire 15A MK2 Active Speaker
