Product features and benefits

• BABY SHARXS lamp family provides consistent lengths and bases for simplified fixture designs
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Consistent lumen output over the life of the lamp
• Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency

• Concert lighting
• Club & Disco
• Stage and theatre
• Studio, TV and film
• Architecture & Architainment

Technical Data

General product information

Product Number: 54298

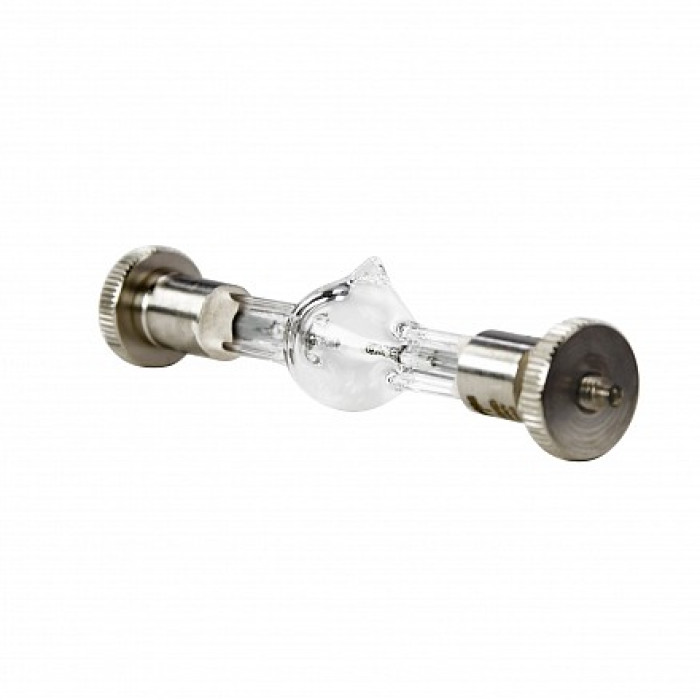

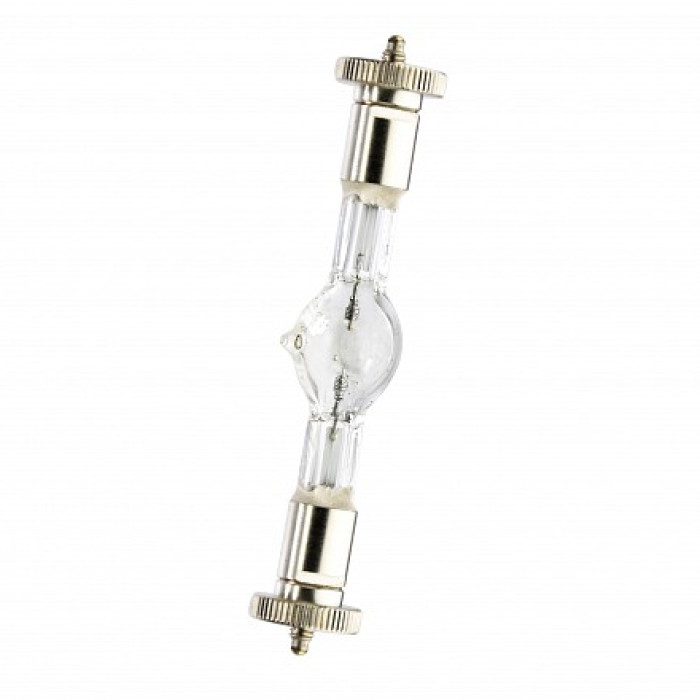

Product Name: BABY SHARXS HTI 300W/D5/57 10/CS 1/SKU

Ordering Abbreviation: BABY SHARXS HTI 300W/D5/57 10/CS 1/SKU

Brand Name: OSRAM

Family Brand Name: Baby SharXS HTI

Application: Entertainment, Effect and Architectural Lighting

Product Remark:

• Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.
• Base has notch for pre-alignment.
• Lamp bases need to be forced cooled.
• Lamp is part of the Baby SharXS HTI lamp series. All Baby SharXS HTI lamps are identical in terms of their shape, size, and bases.

Electrical data

Nominal Wattage: 300 W

Nominal Voltage: 75 V

Current (A): 4.3 A

Type of Current: AC

Light technical data

Luminous Flux: 20000 lm

Light Center Length - LCL (mm): 35 mm

Color Temperature: 5700 K

Color Rendering Index: 80

Physical attributes

Maximum Overall Length (mm): 93 mm

Length l (mm): 93 mm

Length l max. (mm): 93 mm

Diameter d (in): 0.630 in

Diameter d (mm): 16.00 mm

Distance a (mm): 35 mm

Electrode Gap - cold (mm): 5.5 mm

Reflector Coating: 16.00

Additional product data

Lampholder: SFc 10-4

Operating Position: Any

Maximum Base Temperature (ºC): 450 C

Cooling: Forced

Hot Restart: Yes

Class: C (gas)
