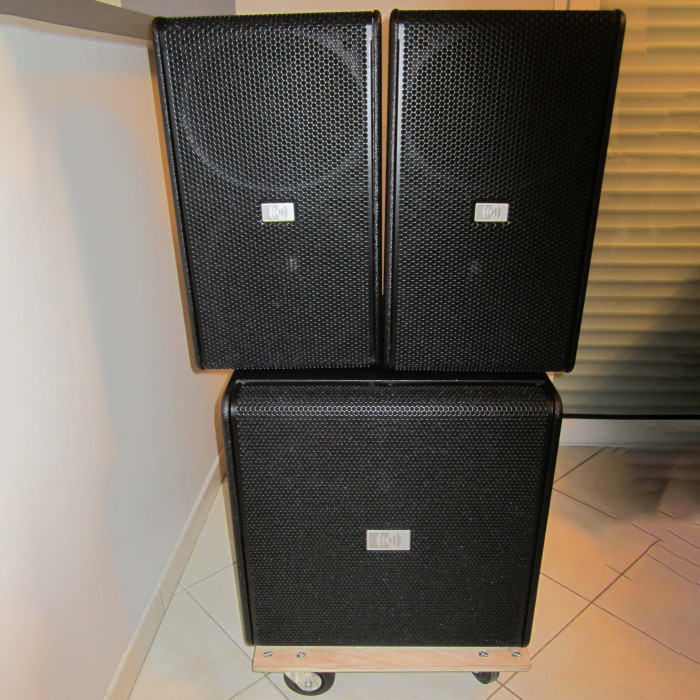

Montarbo Full 1018 ST is a complete PA system consisting of a bass cabinet and two passive satellites, ideal for amplifying voice and instruments in a powerful way even in large spaces.

The FULL1018ST consists of three elements: a bass cabinet active and two passive satellites. Thanks to the DSP Montarbo, it is can adapt the frequency response of the system to the acoustics of the environment, monitor the temperature of the finals, set delay in case of sound reinforcement and "customize" the timbre to create your own sound. The Bass cabinet with 18" woofer incorporates all electronics necessary for the processing and amplification of the entire system. It is equipped with three Class D amplifiers (with power switching) controlled by DSP processor Montarbo (56-bit, 180 MHz, with 24-bit converters) that takes care of all functions of filtering, equalization, delay, throttling and diagnostics. The personalization of preset is done through the exclusive proprietary software Montarbo RAConLS, supplied with LD2.4 USB interface (optional device). Remote control allows: customization and storage of presets, one on the DSP and in unlimited number on PC; equalization with 10 filters Parametric; the adjustment of the delay and the level of system output, verification of signal level and of the thermal state of the power amplifiers.

Technical Specifications

SATELLITE FULL10P

• 10" woofer (3" coil) with neodymium magnet shielded and ventilated
• 1" Driver
• 1.7" coil
• High dispersion waveguide horn 80°H x 70°V
  BASS CABINET FULL18ST
• 18" woofer (4" coil) with neodymium magnet shielded and ventilated
• Frequency response: 37 - 20,000 Hz (system full)
  MAX SPL
• FULL10P: 130 dB max SPL.
• FULL18ST: 133 dB max SPL half-space
  AMPLIFICATION
• Electronic cross-over 100 Hz
• Class D 3 Power Units Amplifier (SMPS)
• LF output power 1 x 1000 W
• HF output power 500 + 500 W
• Total output power 2000 W EIAJ
  PROCESSOR
• Montarbo DSP, 56-bit / 180MHz, 24-bit converters
• 5 presets, one of which can be customized and stored on the DSP
• Remote control and customization of presets using proprietary software Montarbo RAConLSTM and LD2.4 USB interface (optional accessory)

CONNECTIONS AND CONTROLS

• FULL10P: Speakon® 4 poles for connection to the sub
• FULL18ST: Speakon® 4-pole for connection to satellites
• Balanced XLRs for input and link
• Volume control
• LED status indicators (signal presence, clipping, thermal alarm and protection)
• preset LED indicators
• RJ45 DATA of the two RS485FD serial ports for connection remote to PC (Montarbo net)
• PowerCon for Power + Link
  CONSTRUCTION
• Birch plywood, anti-abrasion polyurethane paint
• Equipment Carrying handles
• M10 threaded inserts (on FULL10P cabinets)
• Adapter for connecting rod between the two cabinets
  DIMENSIONS
• FULL10D: 302 x 516 x 256 mm
• FULL18ST: 512 x 522 x 550 mm
  WEIGHT
• FULL10P: 14.5 kg
• FULL18ST: 34.5 kg

The Montarbo Full 1018 system is a high-quality 2-way amplified delivered Plug and play with outstanding performance and rendering power / impressive size, which facilitates its transportation and installation. What differentiates 1018 Full of other same range of sound systems on the market is the choice of high quality speakers, usually decried in other systems. The shape of the satellites and the bass reflex system were studied to reduce the compression and sound turbulence. Full the subwoofer 18 is equipped with Class D amplifiers controlled by a DSP Montarbo (56 bit, 180 MHz, 24 bit converters) which provides filtering, equalization, delay, limiter and diagnostic functions. This DSP utilizes an advanced algorithm for the real time control of the output power and temperature (internal and external) of the amplifier. It also includes a standby function which reduces power consumption when no signal is input. 5 presets available, one of them can be tailored to the needs of the client by the user, thus adapting the acoustic response of the speaker to the user's personal taste.

Montarbo 1018 ST 2000W 3-Way 2000W Amplified System With DSP
